802.11AX Wi-Fi 6E Tri-band Wireless PCI Express Adapter

» WTL-2400AXE

Upgrade Desktops to Fast, Low-Latency Wi-Fi 6E

PLANET WTL-2400AXE is a tri-band 802.11ax Wi-Fi 6E PCI Express x1 wireless adapter powered by the Intel® AX210 chipset. It brings next-generation connectivity to desktop PCs with 2×2 MIMO and OFDMA for high efficiency and lower latency. The adapter supports speeds up to 574 Mbps on 2.4 GHz and up to 2400 Mbps on 5/6 GHz for cleaner spectrum and reduced interference in dense environments.

With Bluetooth® 5.2 (via onboard USB interface), users can connect keyboards, mice, headsets and other peripherals without a separate dongle, simplifying the workspace.

Designed for easy deployment in business and home offices, WTL-2400AXE includes two external 5 dBi antennas to enhance signal coverage. It operates seamlessly on Windows® 10/11 and Linux Kernel 5.10+, making it an ideal upgrade for high-bandwidth applications such as 4K/8K streaming, cloud collaboration, AR/VR trials and online gaming.



Hassle-free Installation for Tri-Band Wi-Fi

WTL-2400AXE uses a standard PCI Express x1 interface for Wi-Fi data and an internal USB connection for Bluetooth functionality. Once installed, your desktop gains simultaneous access to 2.4, 5 and 6 GHz  bands under the Wi-Fi 6E standard, maximizing spectrum choices and minimizing contention with legacy devices.



Wi-Fi 6E Technology Highlights

The WTL-2400AXE brings the latest Wi-Fi 6E (802.11ax) to desktops with 2×2 MIMO, OFDMA, MU-MIMO, BSS Coloring, 160 MHz channel width and WPA3-SAE security. It delivers up to 574 Mbps (2.4 GHz) and 2400 Mbps (5 and 6 GHz) performance and additionally opens the 6 GHz band to reduce interference and latency in high-density environments.



Multiple OS Support

The WTL-2400AXE works seamlessly with Windows® 11 64-bit (2.4, 5 and 6 GHz) and Windows® 10 64-bit 2.4, 5 and 6 GHz).

It is also compatible with Linux distributions using the iwlwifi driver (kernel 5.10+); 6 GHz availability depends on regulatory domain and distro enablement. Bluetooth® 5.2 is supported via the onboard USB interface.



Low-Profile design

The adapter supports both full-height and low-profile PCI Express slots, making it easy to deploy in compact desktops and IPCs.

Package includes: full-height bracket and low-profile bracket for flexible installation.

Wi-Fi 6E Desktop Adapters

PLANET WTL-2400AXE, built on the Intel® AX210 2×2 Wi-Fi 6E platform, brings tri-band 2.4, 5 and 6 GHz connectivity to business desktops and IPCs. With 160 MHz channels, OFDMA/MU-MIMO, BSS Coloring, and WPA3-SAE, it is ideal for organizations standardizing on Wi-Fi 6/6E in offices, classrooms, and meeting rooms—using the clean 6 GHz band to reduce co-channel interference and deliver consistent efficiency and lower latency on existing infrastructure.

As a dependable 6E desktop client, WTL-2400AXE delivers up to 2400 Mbps (5 and 6 GHz) and 574 Mbps (2.4 GHz), while Bluetooth® 5.2 connects headsets, scanners, keyboards, and mice. The PCI Express® x1 interface and full-height/low-profile brackets ensure easy integration into mainstream PCs and embedded systems for video conferencing, cloud collaboration, BYOD screen casting, and large-file sync/backup—also making it a practical 6E test client for AP validation in labs and pilots. (6 GHz availability depends on region, AP, and OS—Windows® 11 recommended.)

  • Intel® AX210 Wi-Fi 6E 2×2 chipset for performance and reliability
  • Tri-band 2.4/5/6 GHz 802.11ax with OFDMA and MU-MIMO for higher efficiency
  • Throughput: up to 574 Mbps (2.4 GHz); up to 2400 Mbps (5 and 6 GHz)
  • PCI Express x1 interface for Wi-Fi data; USB interface for Bluetooth function
  • Bluetooth® 5.2 for seamless connection to headsets, keyboards, mice, etc.
  • Two 5 dBi external antennas to enhance signal coverage and stability
  • Security-ready with modern Wi-Fi encryption (802.11ax standard compliant)
  • Operating temperature 0–55 °C for daily office and SOHO environments
  • Windows® 10, Windows® 11 and Linux® driver support for quick integration
Hardware Specifications
ControllerIntel® AX210
InterfacePCIe 2.0 x1（Wi-Fi via PCIe, Bluetooth via USB）

** On certain small-form-factor business desktops with a single chipset-attached (PCH) PCIe slot, PCIe 2.x fallback compatibility may be limited, which can prevent proper detection. We recommend using PCIe 3.0 or newer adapters on such platforms, or a motherboard with a CPU-attached x16 slot.
Antenna2 × external 5 dBi
Dimensions (W x D x H)65 × 44.5 × 1.6 mm
Weight84g
Power SupplyPCI Express bus-powered (3.3V)
USB 5V (internal header) for Bluetooth function
No external power connector required
Power ConsumptionMax. 0.33 watts / 1.13 BTU/h (Power on without any connection; Wi-Fi only, 3.3 V@100 mA)
Max. 0.66 watts / 2.25 BTU/h (Full loading; Wi-Fi only, 3.3 V@200 mA)
Wireless
StandardIEEE 802.11ax/ac/n/b/g/a
Bands2.4 GHz: 2400–2483.5 MHz
5 GHz: 5150–5850 MHz
6 GHz: 5925–7125 MHz
Data Rate2.4 GHz up to 574 Mbps
5 GHz up to 2400 Mbps
6 GHz up to 2400 Mbps
MIMO2×2 spatial streams
Bluetooth
VersionBluetooth 5.2 (via USB interface)
Advanced Functions
Operating System SupportWindows® 10 (64-bit)
Windows® 11 (64-bit)
Linux® (64-bit, kernel 5.10+ with iwlwifi & Intel firmware)
Standards Conformance
Standards ComplianceIEEE 802.11a/b/g (2.4/5 GHz)
IEEE 802.11n (HT)
IEEE 802.11ac (VHT; up to 80/160 MHz)
IEEE 802.11ax (HE; 2.4/5/6 GHz, Wi-Fi 6E)
Bluetooth® 5.2 (via internal USB interface)
PCI Express x1 (for Wi-Fi interface)
USB (for Bluetooth function)
Regulatory ComplianceFCC Part 15 Class B, CE
Environment
Operating Temperature0 ~ 55 degrees C
Storage Temperature-10 ~ 70 degrees C
Operating Humidity5 ~ 90%, relative humidity, non-condensing
Storage Humidity5 ~ 90%, relative humidity, non-condensing
Standard Accessories
Package Contents1 × WTL-2400AXE Wi-Fi 6E PCIe x1 adapter (full-height bracket pre-installed)
1 × Low-profile bracket
2 × External antennas
1 × Bluetooth® USB header cable (9-pin)
1 × QR code sheet


Model

Description

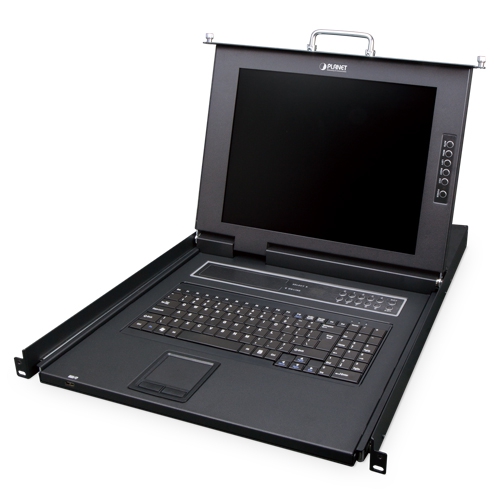

KVM-210-08M

17″ 8-Port Combo VGA LCD KVM Switch

IGS-6325-8UP2S2X

Industrial L3 8-Port 10/100/1000T 802.3bt PoE + 2-Port 100/1000X SFP + 2-Port 10G SFP+ Managed Ethernet Switch

GS-6311-48P6X

L3 48-Port 10/100/1000T 802.3at PoE + 6-Port 10G SFP+ Managed Ethernet Switch

GS-6311-24T4X

L3 24-Port 10/100/1000T + 4-Port 10G SFP+ Managed Ethernet Switch

GS-6311-24HP4X

L3 8-Port 802.3bt PoE + 16-Port 802.3at PoE + 4-Port 10G SFP+ Managed Ethernet Switch

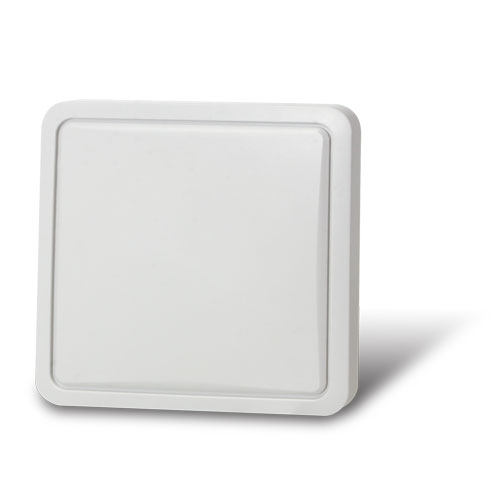

ANT-FP14AD
