2500BASE-X SFP Transceiver

» MGB-2G Transceiver

PLANET MGB-2G small form-factor pluggable (SFP) transceiver modules are specifically designed to work with PLANET products with 2.5G SFP interface that enables to build a high-performance 2.5Gbps Ethernet network over optical fiber for enterprises, telecoms and ISPs.



These transceiver modules are compliant with the SFP Multisource Agreement (MSA) and hot pluggable. These modules offer an easy way to be installed in SFP MSA compliant ports at any time without the interruption of the host equipment operation.



The MGB-2G SFP Mini-GBIC Gigabit Ethernet modules can be installed in PLANET Switch products with SFP mini-GBIC interface. The deployment distance can be extended from 100 meters (RJ45 to SFP) or 300 meters (Multi-mode, LC) to up to 20 kilometers (Single-mode, LC).



To meet the increasing demand of the Industrial Ethernet fiber solution, PLANET MGB-2G T series 2500BASE-X transceivers can operate reliably in the electrically harsh, climatically demanding, and wide temperature range (-40 degrees C to 85 degrees C) environment. The MGB-2G T series transceivers provide easy and fast 2.5Gbps connection for PLANET wide temperature industrial equipment.

The MGB-2G SFP 2.5Gigabit Ethernet module is ideal for all industrial purposes as it can withstand an extreme temperature of -40 to 85 degrees Celsius. Network infrastructures can be expanded with ease as the deployment distance can be extended from 100 meters (RJ45 to SFP) or 300m (Multi-mode, LC) to up to 20 kilometers (Single-mode, LC). The SFP transceivers are hot-pluggable and hot-swappable. You can plug in and pull out the transceivers to/from any SFP port without having to power off the Switch.

  • Up to 2.5Gbps data links
  • Duplex/Single LC connector
  • Single power supply of 3.3V
  • TTL signal detection indicator
  • Hot pluggable
  • DDM (digital diagnostic monitoring)
  • Wide operating temperature from -40 degrees C to 85 degrees C
  • Monitoring interface compliant with SFF-8472
  • Plug and Play configuration
MGB-2GTRJ
PHY Type2500BASE-X
ConnectorRJ45 Copper
DDMYes
Maximum Distance100m
Operating Temperature-40~85 degrees C
Storage Temperature-40~85 degrees C

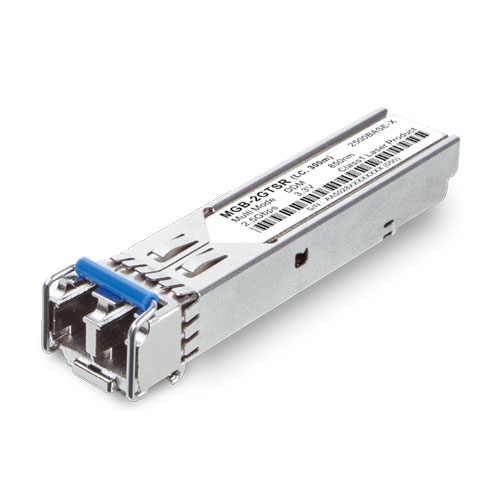

MGB-2GTSR
PHY Type2500BASE-X
Fiber TypeMulti-mode
ConnectorDual LC/UPC
DDMYes
Wavelength850nm
Maximum Distance300m
Operating Temperature-40~85 degrees C
Storage Temperature-40~85 degrees C
MGB-2GTLA20
PHY Type2500BASE-X
Fiber TypeSingle-mode
ConnectorSimplex LC/UPC
DDMYes
WavelengthTX1310nm, RX1550nm
Maximum Distance20km
Operating Temperature-40~85 degrees C
Storage Temperature-40~85 degrees C
MGB-2GTLB20
PHY Type2500BASE-X
Fiber TypeSingle-mode
ConnectorSimplex LC/UPC
DDMYes
WavelengthTX1550nm, RX1310nm
Maximum Distance20km
Operating Temperature-40~85 degrees C
Storage Temperature-40~85 degrees C
MGB-2GLR2
PHY Type2500BASE-X
Fiber TypeSingle-mode
ConnectorDuplex LC/UPC
DDMYes
Wavelength1310nm
Maximum Distance2km
Operating Temperature0~70 degrees C
Storage Temperature-40~85 degrees C
MGB-2GLR20
PHY Type2500BASE-X
Fiber TypeSingle-mode
ConnectorDuplex LC/UPC
DDMYes
Wavelength1310nm
Maximum Distance20km
Operating Temperature0~70 degrees C
Storage Temperature-40~85 degrees C
MGB-2GSR
PHY Type2500BASE-X
Fiber TypeMulti-mode
ConnectorDual LC/UPC
DDMYes
Wavelength850nm
Maximum Distance300m
Operating Temperature0~70 degrees C
Storage Temperature-40~85 degrees C
MGB-2GLA20
PHY Type2500BASE-X
Fiber TypeSingle-mode
ConnectorSimplex LC/UPC
DDMYes
WavelengthTX: 1310nm, RX:1550nm
Maximum Distance20km
Operating Temprature0~70 degrees C
Storage Temperature-40~85 degrees C
MGB-2GLB20
PHY Type2500BASE-X
Fiber TypeSingle-mode
ConnectorSimplex LC/UPC
DDMYes
WavelengthTX:1550nm, RX:1310nm
Maximum Distance20km
Operating Temperature0~70 degrees C
Storage Temperature-40~85 degrees C
MGB-2GTLR2
PHY Type2500BASE-X
Fiber TypeSingle-mode
ConnectorDuplex LC/UPC
DDMYes
Wavelength1310nm
Maximum Distance2km
Operating Temperature-40~85 degrees C
Storage Temperature-40~85 degrees C
MGB-2GTLR20
PHY Type2500BASE-X
Fiber TypeSingle-mode
ConnectorDuplex LC/UPC
DDMYes
Wavelength1310nm
Maximum Distance20km
Operating Temperature-40~85 degrees C
Storage Temperature-40~85 degrees C
Date Version Description Download
2023/11/081.1

MGB-2G Series

 Download Icon
Date Version Description Download
2023/21/042.0

Modify contents of user manual.

 Download Icon


Model

Description

KVM-210-08M

17″ 8-Port Combo VGA LCD KVM Switch

IGS-5225-4UP1T2S-12V

Industrial L2+ 4-Port 10/100/1000T 802.3bt PoE + 1-Port 10/100/1000T + 2-Port 1G/2.5G SFP Managed Ethernet Switch w/12V Booster

IGS-5225-4T2S

L2+ Industrial 4-Port 10/100/1000T + 2-Port 1G/2.5G SFP Managed Ethernet Switch

GS-6311-48P6X

L3 48-Port 10/100/1000T 802.3at PoE + 6-Port 10G SFP+ Managed Ethernet Switch

GS-6311-16S8C4XR

L3 16-Port 100/1000X SFP + 8-Port Gigabit TP/SFP + 4-Port 10G SFP+ Managed Ethernet Switch with 36-72V DC Redundant Power

ANT-FP14AD

2×2 MIMO 5GHz 14dBi Flat-Panel Dual Polarization Direction Antenna

Ordering Information

MGB-2G Transceiver

2500BASE-X SFP Transceiver

Ordering Information

MGB-2GTSR

 2.5G SFP Transceiver (Multi-mode, 850nm, DDM, -40~85 degrees C) - 300m

MGB-2GTLA20

 2.5G SFP Transceiver (Single mode WDM, TX:1310nm RX:1550nm, DDM, -40~85 degrees C) - 20km

MGB-2GTLB20

 2.5G SFP Transceiver (Single mode WDM, TX:1550nm RX:1310nm, DDM, -40~85 degrees C) - 20km

MGB-2GSR

 2.5G SFP Transceiver (Multi-mode, 850nm, DDM, 0~70 degrees C) - 300m

MGB-2GLA20

 2.5G SFP Transceiver (Single mode WDM, TX:1310nm RX:1550nm, DDM, 0~70 degrees C) - 20km

MGB-2GLB20

 2.5G SFP Transceiver (Single mode WDM, TX:1550nm RX:1310nm, DDM, 0~70 degrees C) - 20km

MGB-2GLR20

 2.5G SFP Transceiver (Single mode, 1310nm, DDM) - 20km

MGB-2GLR2

 2.5G SFP Transceiver (Single mode, 1310nm, DDM) - 2km

MGB-2GTLR20

 2.5G SFP Transceiver (Single mode, 1310nm, DDM, -40~85 degrees C) - 20km

MGB-2GTLR2

 2.5G SFP Transceiver (Single mode, 1310nm, DDM, -40~85 degrees C) - 2km
