Outdoor IP67 LoRa Node Controller

» LN501

Feature-rich Sensor Hub for Connecting Sensors

PLANET LN501 is an outdoor LoRa node controller used for data acquisition from multiple sensors. It contains different I/O interfaces such as analog inputs, digital inputs, digital outputs, serial ports and so on to simplify the deployment and replacement of LoRaWAN networks. The LN501 can be easily and quickly configured by NFC or wired USB port. For outdoor applications, it provides solar or built-in battery power supply and is equipped with IP67-rated enclosure and M12 connectors to protect itself from water and dust in harsh environments.



LoRaWAN-based Controller with Rich Industrial Interfaces

The LN501 is LoRaWAN compatible and is with built-in multiple industrial interfaces to connect to all types of sensors, meters and other appliances. It also bridges Modbus data between serial and Ethernet network via LoRaWAN. The LN501 supports LoRaWAN class A and C protocol to be in full compatibility with standard LoRaWAN gateways including PLANET LCG-300 series.

  • RS232
  • RS485
  • GPIO
  • Analog Input
  • SDI-12



The LN501 is ideal for large-scale IoT application deployments, such as projects for building automation, smart metering, HVAC system, etc. With multiple interfaces, PLANET LN501 can perfectly help retrofit legacy assets into IoT enablement.

Highlights

  • Easy to connect with multiple wired sensors through GPIO/AI/RS232/RS485/SDI-12 interfaces
  • Long transmission distance up to 11km with line of sight
  • Waterproof design including IP67 case and M12 connectors
  • Solar powered and built-in battery (optional)
  • Quick wireless configuration via NFC
  • Compliant with standard LoRaWAN gateways and network servers



Wireless Transmission
TechnologyLoRaWAN
AntennaInternal Antenna
FrequencyLN501-868M: IN865, EU868, RU864
LN501-915M: US915, AU915, KR920, AS923
Tx Power16dBm(868)/20dBm(915)
Sensitivity-137dBm @300bps
Work ModeOTAA/ABP Class A, Class C
Data Interfaces
Interface TypeM12 A-Coded Male
IOPorts
　2 × GPIO
Logical Level
　Low: 0~0.9V, High: 2.5~3.3V
Maximum Current
　20 mA
Work Mode
　Digital input, digital output, pulse counter
Serial PortPorts
　1 × RS232 or RS485 (Switchable)
Baud Rate
　1200~115200 bps
Protocol
　Transparent (RS232), Modbus RTU (RS485)
Analog InputPorts
　2 × Analog input
Resolution
　12 bit
Input Range
　4~20mA or 0~10V (Switchable)
SDI-12Ports
　1 × SDI-12
Protocol
　SDI-12 V1.4
Power OutputPorts
　2 × 3.3 V, 2 × 5/9/12 V (Switchable)
Power Time Before Data Collection　
　0~10 minutes
Operation
Power On & OffNFC, power button (Internal)
ConfigurationPC software (via USB Type C or NFC)
Physical Characteristics
Operating Temperature-20°C to +60°C
Ingress ProtectionIP67
Dimensions116 × 116 × 45.5 mm
Power Connector1 × M12 A-Coded Male Interface
Power SupplySolar powered + 2 X 2550mAh battery backup + 5-24 VDC
InstallationDesktop, Wall mounting
Standards Conformance
Regulatory ComplianceCE, FCC
Date Version Description Download
2023/22/122.0

LN501

 Download Icon
Date Version Description Download
2023/15/122.0

Release for hardware version 2.0.

 Download Icon
Date Version Description Download
2024/02/012.0

Release for hardware version 2.0.

 Download Icon


Model

Description

LS200-RF

IP65 LoRaWAN Refrigerator Temperature and Humidity Sensor

LS200-PT

IP65 LoRaWAN Product Temperature Sensor

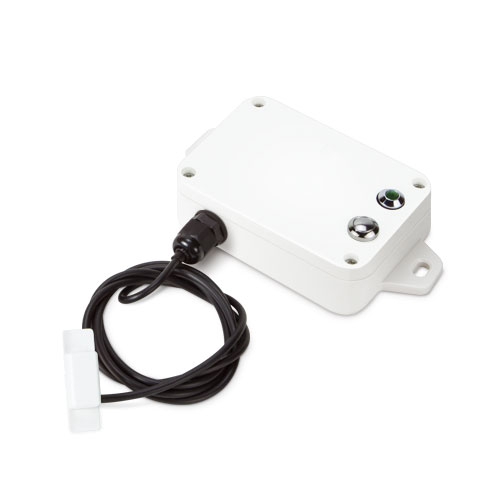

LS100-WL

IP65 LoRaWAN Water Leak Sensor

LS100-SMK

IP20 LoRaWAN Smoke Detector (High-Temperature Alarm, EU868/US915 Sub 1G)

LN502

IP67 Outdoor Solar LoRa Node Controller

LN1130

Industrial IP30 LoRa Node Controller (Modbus RS232, RS485, EU868/US915 Sub 1G)

Ordering Information

LN501

Outdoor IP67 LoRa Node Controller

Ordering Information

LN501-868M

 Outdoor IP67 LoRa Node Controller (RS232, RS485, GPIO, and Analog Input, EU868 Sub 1G)

LN501-915M

 Outdoor IP67 LoRa Node Controller (RS232, RS485, GPIO, and Analog Input, US915 Sub 1G)
